Description

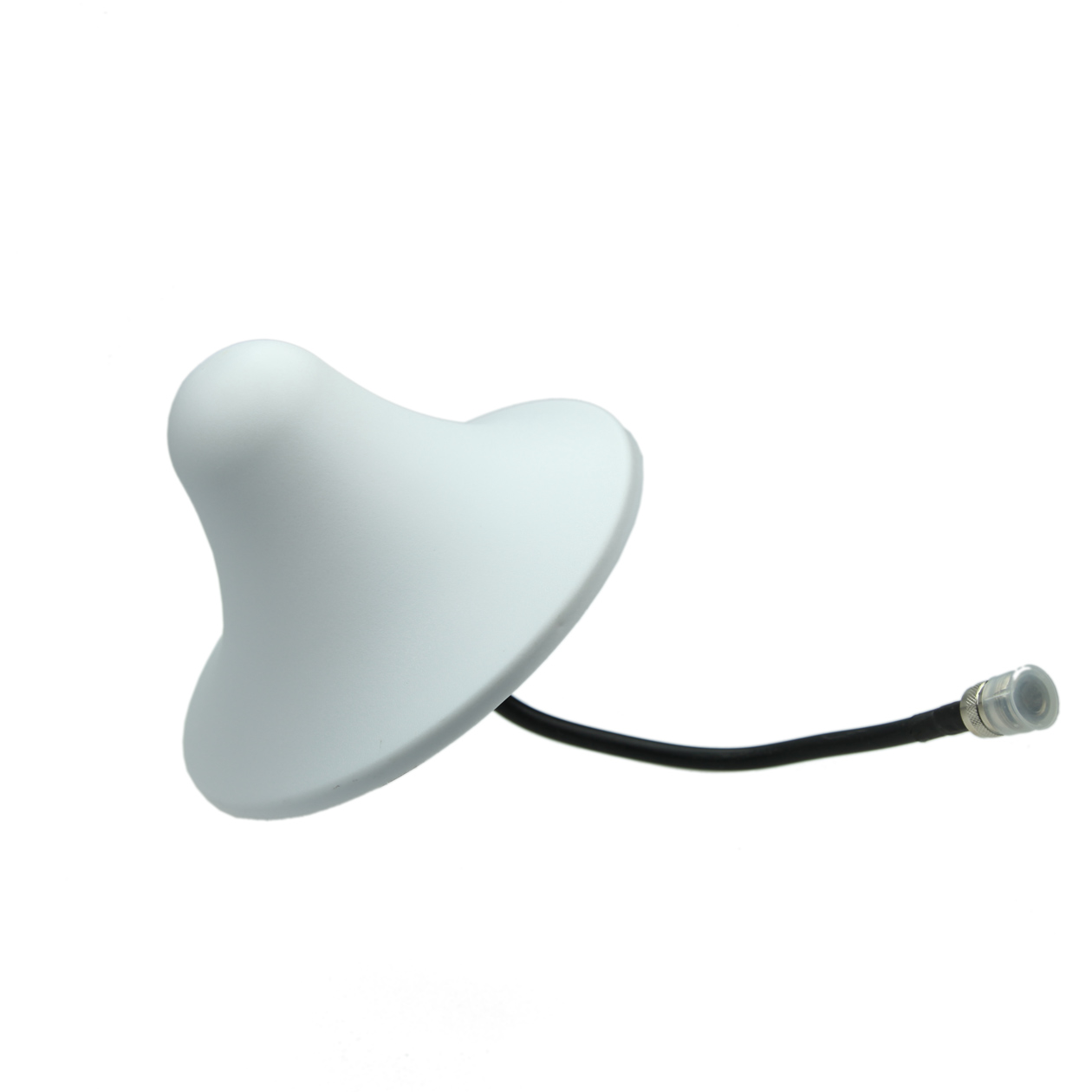

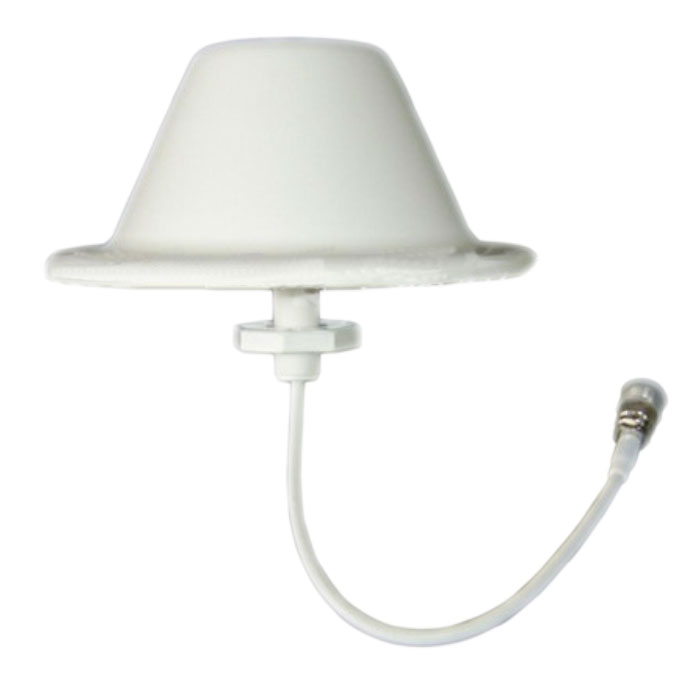

Easy Setup Omni Antenna
A simple to use accessory is our Multiband Omni Kit which transmitts signal in a range of 360 degrees. It has been mostly built for suspended ceiling installation and has shown that it offers a broader signal coverage than the whip or panel antenna.
It is compliant and operates with all boosters all over the Uk and Worldwide on the following frequencies: 800MHZ/900 MHZ/1800MHZ/2100MHZ/2600 MHZ.
It is simple to install and can conveniently be used in any property with its sleek look.
If you need to install an additional antenna to your links, please consult our technical / sales staff.
| Frequency Range | 698-806/806-960/1710-2700MHz |
| Gain | 2.2±0.5/3.5±0.5/4.5±1.0 |
| Polarization | Horizontal |
| VSWR | ≤1.5 |
| PIM, 3rd Order, 2 x 2 W | ≤-140 |
| Input Impedance | 50Ω |
| Maximum Power | 50W |
| Connection Type | N-Female |
| Weight | 0,3 kg |
| Dimension | Φ220*18mm |
| Lighting Protection | DC Ground |
| Mounting Kit | Ceiling, via hole (standard) |
| Operational Temperature | -55～60℃ |
| Operational Humidity | < |
