All In One BoosterDescription
2G | 3G | 4G Voice, Text And Data | All UK Networks 1500 Sqm
Vodafone | O2 | EE | Three | All Frequencies | Voice & Data
HiBoost Hi10-5S Pro is a perfect booster that will help resolve and instantly improve your GSM voice/text and 3G/4G voice / data coverage. This Mini 4 Band booster is compatible with all networks in the UK and Europe transmitting on the following frequencies –
- EGSM900
- DCS/LTE1800
- WCDMA2100
- LTE800
- LTE2600
and will enhance clearer talks on the phone without breaks and enable fast wider 3G /4G mobile data download.
The Hi10-5S Pro is ideal for use in small homes, houses, office buildings, cabins, etc, and any other indoor space of up to 500 sqm. You can achieve wider signal coverage areas if an extra indoor panel or Omni antenna is added. This device effectively supports up to 75 simultaneous users, supports five frequencies. With the Hi10-5S Pro boosters, you are guaranteed smooth and uninterrupted calls.
HiBoost Hi10-5S auto-adjusts to best signal output within 1 minute of switching it on. Hi10-4S is packed with super cool intelligent features that let you operate your booster from the comfort of your mobile phone. Please note that a maximum multi-room of two, purchases of more accessories will be required if more than two room or multi floors. kindly talk to our Technical support about this and we will be happy to help.
Key Features
• Supports LTE800, EGSM900, DCS1800, WCDMA2100 MHz,LTE2600
• Real-time and touch screen LCD display
• Manual and automatic gain control functions
• Bluetooth and Wi-Fi modules
• Setup and monitoring via a mobile app
• Self-oscillation protection
• Quality built, strong and durable
• Conforms to ETSI & 3GPP standards
The HiBoost Hi10-5S Pro is built to boost and significantly improve mobile phone signal coverage for very large buildings and is packed with many amazing features including:
Mobile APPS
This feature enables users to monitor and control the functionality of their device remotely via wifi or Bluetooth from any location. Through the mobile app, you can switch your device on/off and also set the signal gains on your booster.
The App “Signal supervisor” allows users to take control of your devices wherever and whenever you want through wifi or Bluetooth. Users can also share their devices with their technicians via these Apps. This App is easy to download from the Apple Store or Google play store.

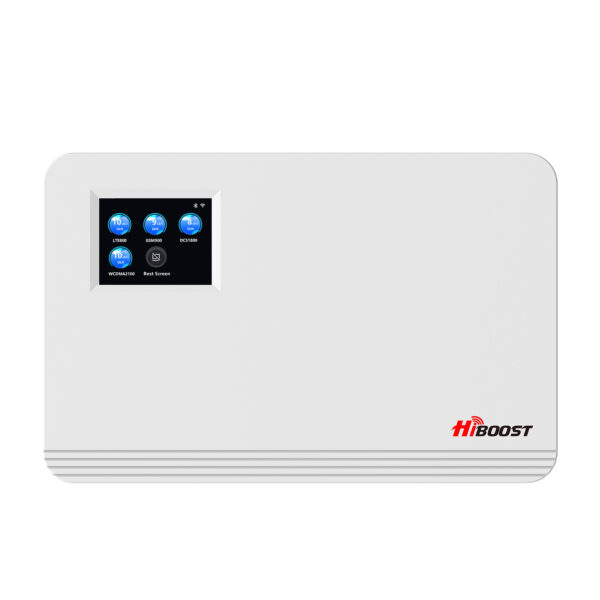

Smart LCD Functions
Real-Time Monitoring
You take control of the current working status of your booster through the Information on the gain, frequency, and output power displayed on the LCD of the booster.
Smart Troubleshooting
Detects and shows an exact kind of malfunction (ALC or ISO) giving you the cue that is necessary to fix.
Assistance in Installation
Helps to find the best point for outdoor antenna mounting based on the output power value displayed on the screen.
Automatic Gain Control
AGC automatically measures and adjusts incoming signals strength and only allows strength needed for coverage in your area to be released. This feature helps prevent interference and frequencies overlap.
All our Boosters are really easy to install with our easy to use Installations manuals.
- A mobile phone signal booster is supplied with all the accessories you require for set up and use. It is basically a plug and play device and which can be done without employing any professional installer.
- The Booster and the indoor antenna should be mounted inside the intended coverage area. Link the antenna and the booster with the coaxial cable supplied with the system.
- Plug in the mobile booster to a power source and start experiencing a no drop calls and high-speed data download. The device will auto-adjusts the best parameters for your area in 30 seconds after the start.
IMPORTANT NOTE: Please call our Technical Support for advice if you are installing one of our pro series boosters, multiple rooms connections and or need further clarifications on any or all of our products.

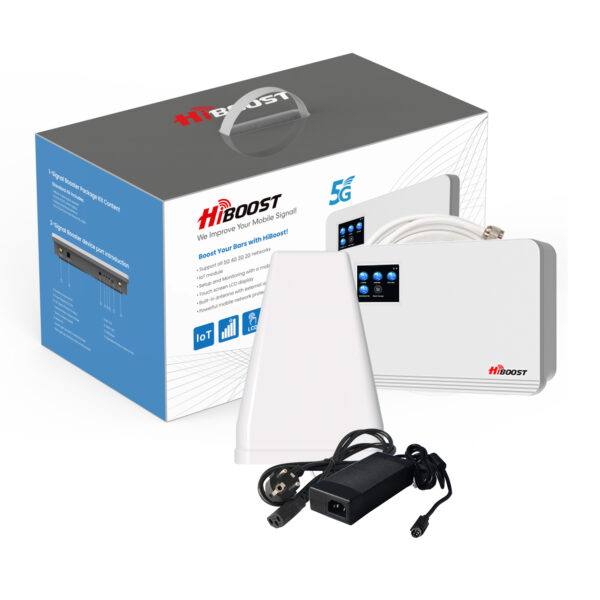

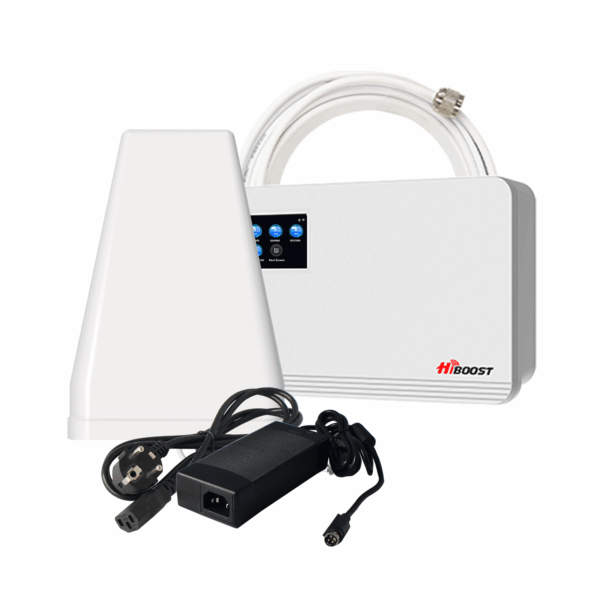

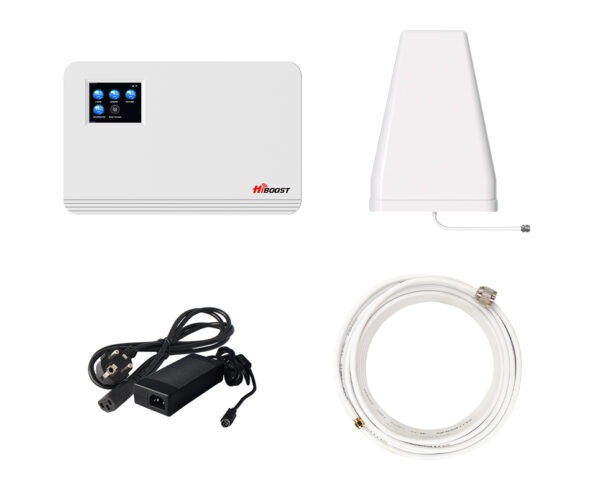

What’s Included With Your Booster
• Five bands mobile signal booster
• Outdoor wideband directional antenna
• Indoor antenna
• HiBoost 200 low loss cable 50ft/15.2 m
• 12V / 3A, AC /DC power supply
Certifications
All our Boosters are certified under the UK and EU safety Laws
| Coverage Area | 1500 m² |
| Application | Home and Office Building |
| Network Type | Calls, 3G / UMTS, 4G / LTE |
| Frequency | 800 MHz (4G/LTE), 900 MHz (GSM/EGSM), 1800 MHz (DCS/LTE), 2100 MHz (3G/WCDMA), 2600 MHz (4G/LTE) |
| Frequency Range | 832~862MHz (Uplink) 791~821MHz (Downlink), 880~915MHz (Uplink) 925~960MHz (Downlink), 1710~1785MHz (Uplink) 1805~1880MHz (Downlink), 1920~1980MHz (Uplink) 2110~2170MHz (Downlink), 2500~2570MHz (Uplink) 2620~2690MHz (Downlink) |
| Number Of Bands | Five Band |
| Max. Gain | 55dB (Uplink) – 60dB (Downlink) |
| MGC (Step Attenuation) | ≥ 16dB / 1 dB step, dip switch control |
| Intelligent AGC (ALC / ISO) | ≥42 dB / ≥42 dB |
| Gain Flatness | Typical ≤5 dB (P-P) |
| Noise Figure @ Max. System Gain | Typical ≤5 dB |
| V.S.W.R | Typical ≤2 |
| Group Delay | ≤ 1 μs |
| Frequency Stability | ≤0.01 ppm |
| Power Supply | Input AC100~240V.50/60Hz, Output DC12V/7A |
| Power Consumption | ≤24W |
| Input & Output Impedance | 50 ohm |
| LCD Display | Frequency, Gain, Output Power, ALC, ISO, etc. |
| Indication LEDs | No |
| I /O Port Type | N-Female |
| Dimensions | 153 x 246 x 36mm/ 6 x 9.7 x 1.4inch |
| Booster Weight | 1 kg |
| Booster Weight with KIT | 1.5kg |
| Operating Temperature | -10ºC~+55ºC |
| Storage Temperature | -10ºC~+80ºC |
| Relative Humidity | 5% – 95% |
| Barometric Pressure | 55 kPa -106 kPa |
| Environment Conditions | IP40 |
