Description

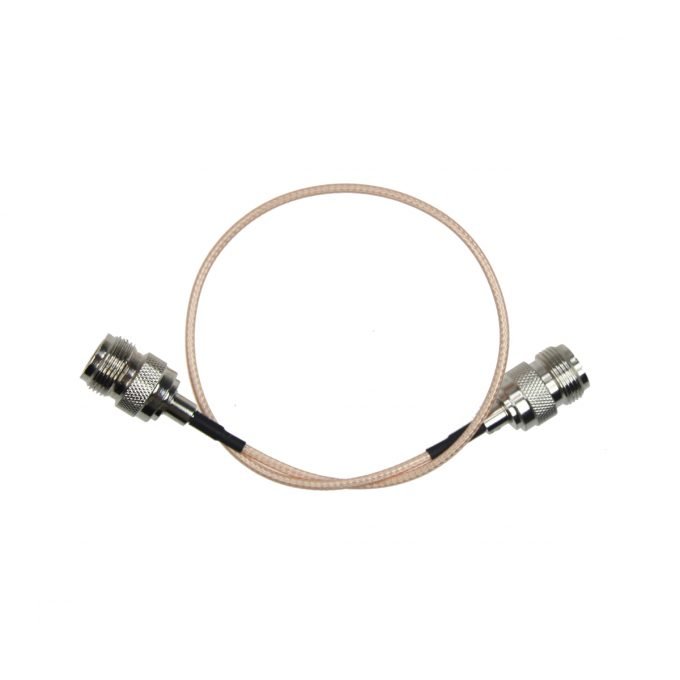

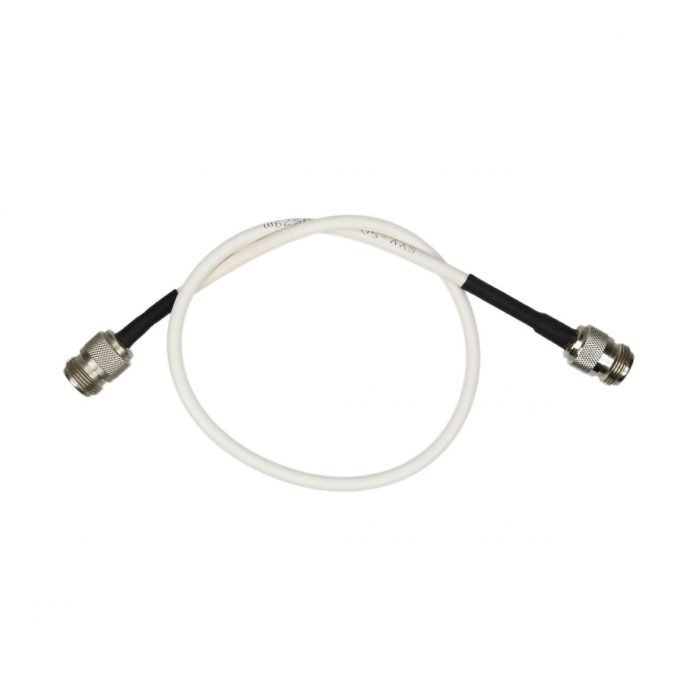

The 30cm signal cable is a thin—ultra-Low Loss RF coaxes window jumper cable. Window jumper cable is designed to connect the outdoor aerial to signal repeater through a window edge without drilling through the wall. It is a convenient option for people in rental units or listed buildings where drilling is not an option. The window jumper cable is extremely low-loss and will have a negligible effect on the repeater unit’s signal loss.
The window jumper cable comes with N-type female connectors that connect to the standard COAX cable. To use a Window Jumper Coax, you need 2pcs signal cables(one connect from the outdoor aerial to the jumper and another to connect from the jumper to the repeater).
TECHNICAL SPECIFICATION
| Frequency | 866~2599MHz | ||
| Connector Type | 2 x N Female Connectors | ||
| Application |
Suitable for all kinds of mobile boosters
|
||
| Impedance | 50 ohms | ||
| Signal Loss |
GSM900: 0.435dB; GSM1800: 0.62dB; 3G 2100: 0.67dB.
|
MECHANICAL SPECIFICATION
| Dimension |
Length: 330mm; Diameter: 3.2mm(cable), 11mm(connector)
|
